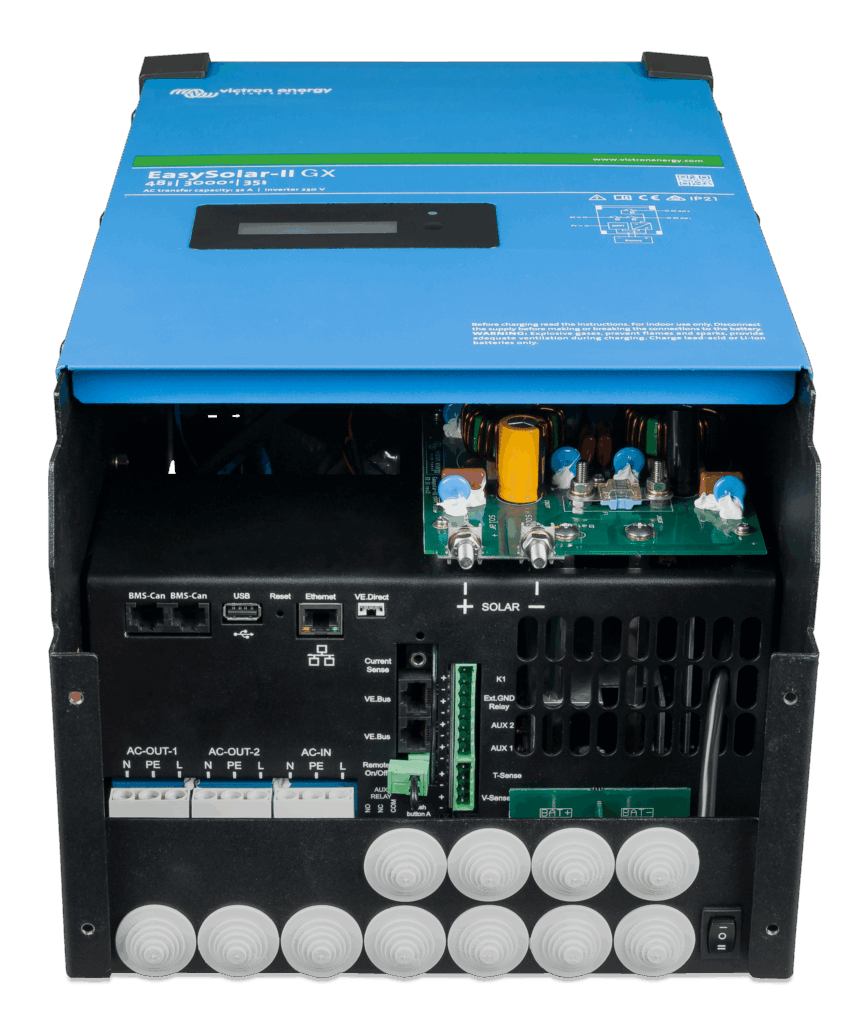

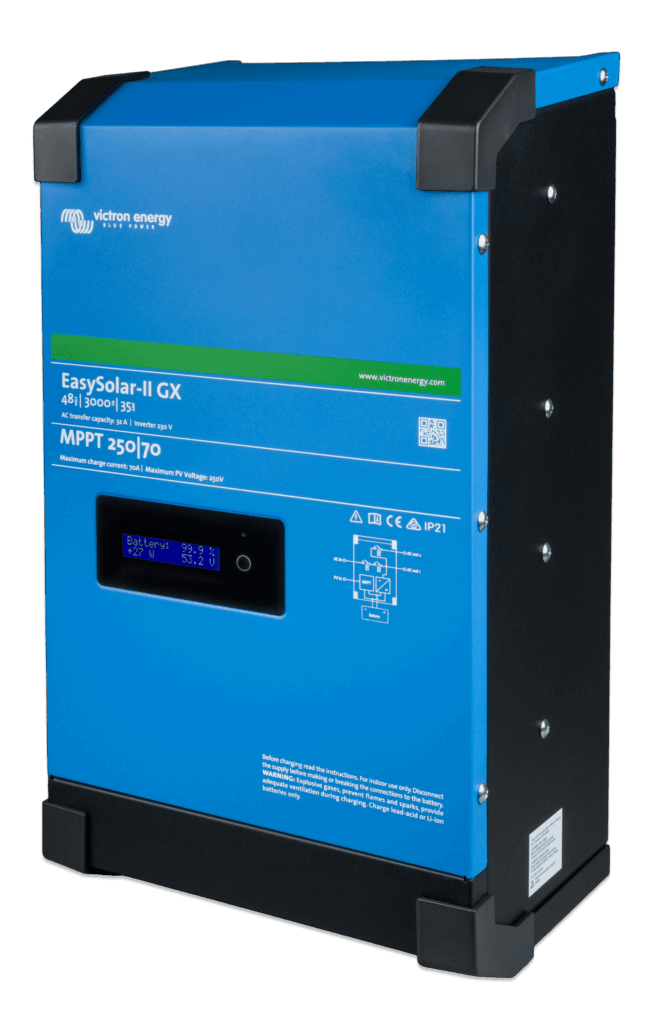

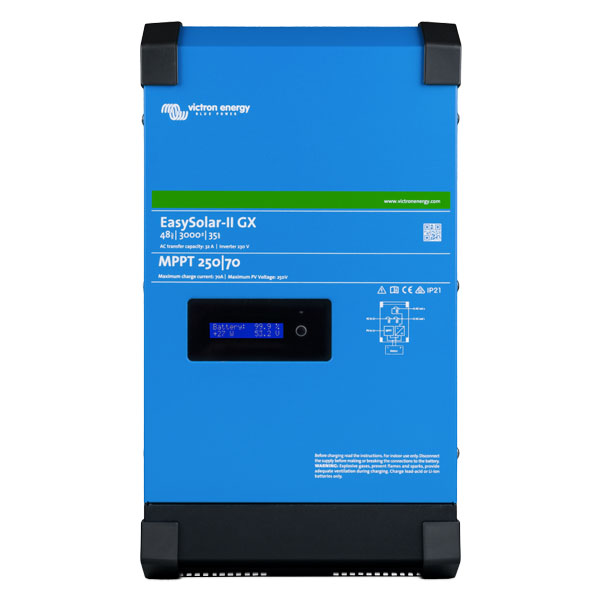

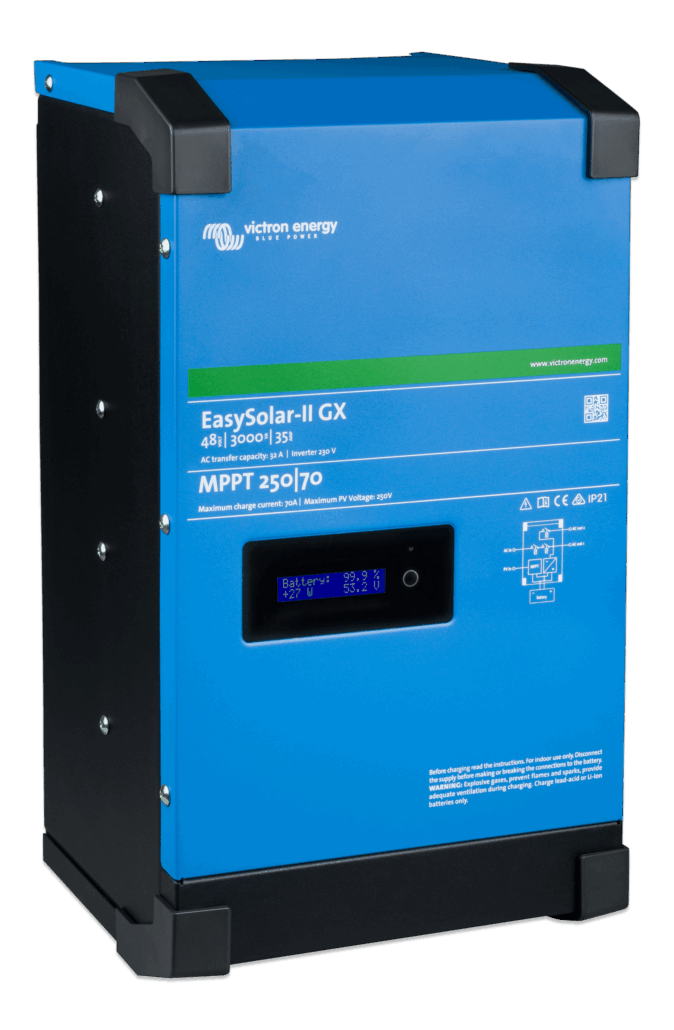

(Images for demonstration purposes only – Model above is the Victron Energy EasySolar-II 48/3000/35-32 MPPT 250/70 GX – PMP482307010)
The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
The all-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
The integrated GX device includes:
• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
• A USB port
• An Ethernet port
• A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
