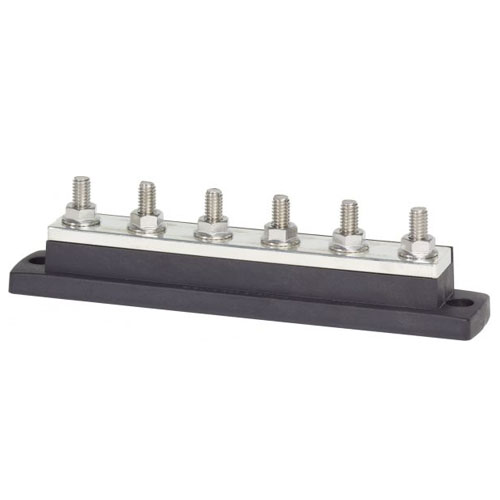

Blue Sea MaxiBus 250A BusBar – Six 5/16″-18 Studs (2126)

Blue Sea MaxiBus 250A BusBar – Six 5/16″-18 Studs (2126)

£69.90 Inc. VAT

SKU: BS2126 Category: Tags: ,

Busbars are used to consolidate multiple wires or feed multiple circuits

  • Insert molded stainless steel studs eliminate need for securing nut and allow high torqueing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminium and steel mounting surfaces
Specifications
Maximum Voltage 300V AC
48V DC
Number of Terminal Studs 6
Terminal Type 5/16″-18 Stud
Continuous Rating  250A
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Recommended Stud Torque 132 in-lb (14.91 N·m)
Weight 1.00Lb (0.45 Kg)
Weight 0.80lb (0.36 kg)



Weight 0.45 kg
Dimensions 20.1 × 3.8 × 4.9 cm
