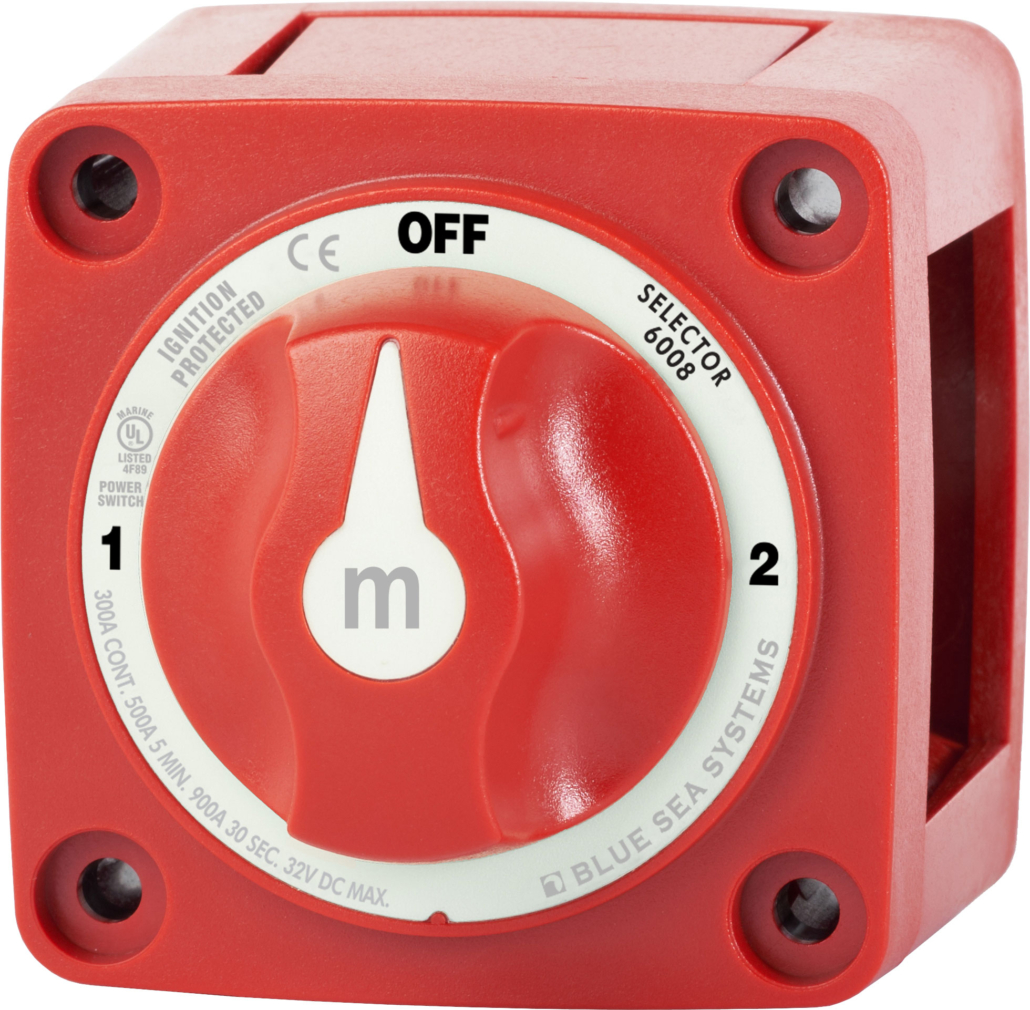

Blue Sea m-Series Selector 3 Position Battery Switch – Red (6008)

Blue Sea m-Series Selector 3 Position Battery Switch – Red (6008)

£54.59 Inc. VAT

Available on back-order

SKU: BS6008 Category: Tags: , , ,

Switches a single battery to a single load group.

  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
Specifications
Switch Type  Selector 3 Position
Color Red
Switch Positions 3
Battery Combine No
Alternator Field Disconnect  No
Maximum Voltage 32V DC
Stud Size 3/8″
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating  300A
Intermittent Rating  500A (5 Min)
Cranking Rating 30 sec  900A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
4/0 AWG (130mm²)
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8″ – 16 (M10)
Weight 0.77Lb (0.35 Kg)



Weight 0.29 kg
Dimensions 7.5 × 7.5 × 8.5 cm
