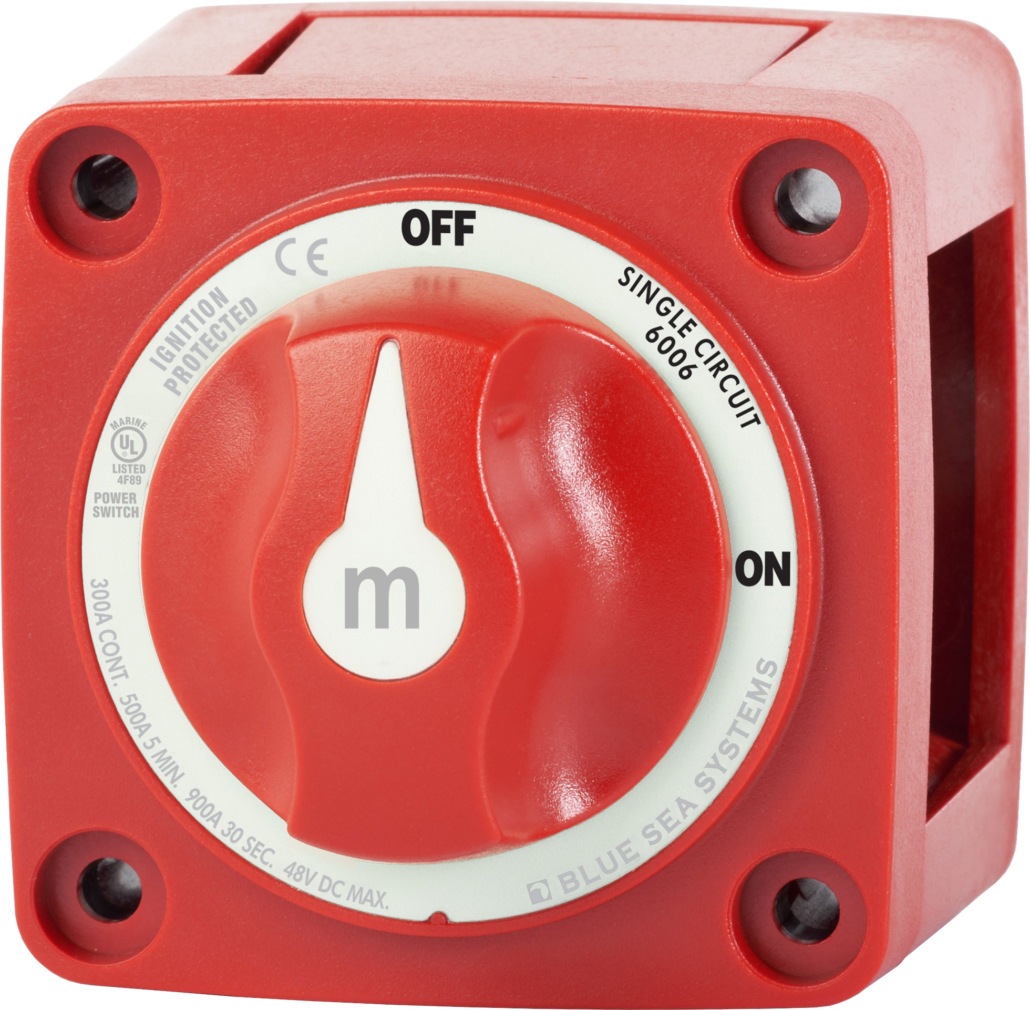

Blue Sea m-Series Mini On-Off Battery Switch with Knob – Red (6006)

Blue Sea m-Series Mini On-Off Battery Switch with Knob – Red (6006)

£37.90 Inc. VAT

Available on back-order

SKU: BS6006 Category: Tags: , , ,

Switches a single battery to a single load group

  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting

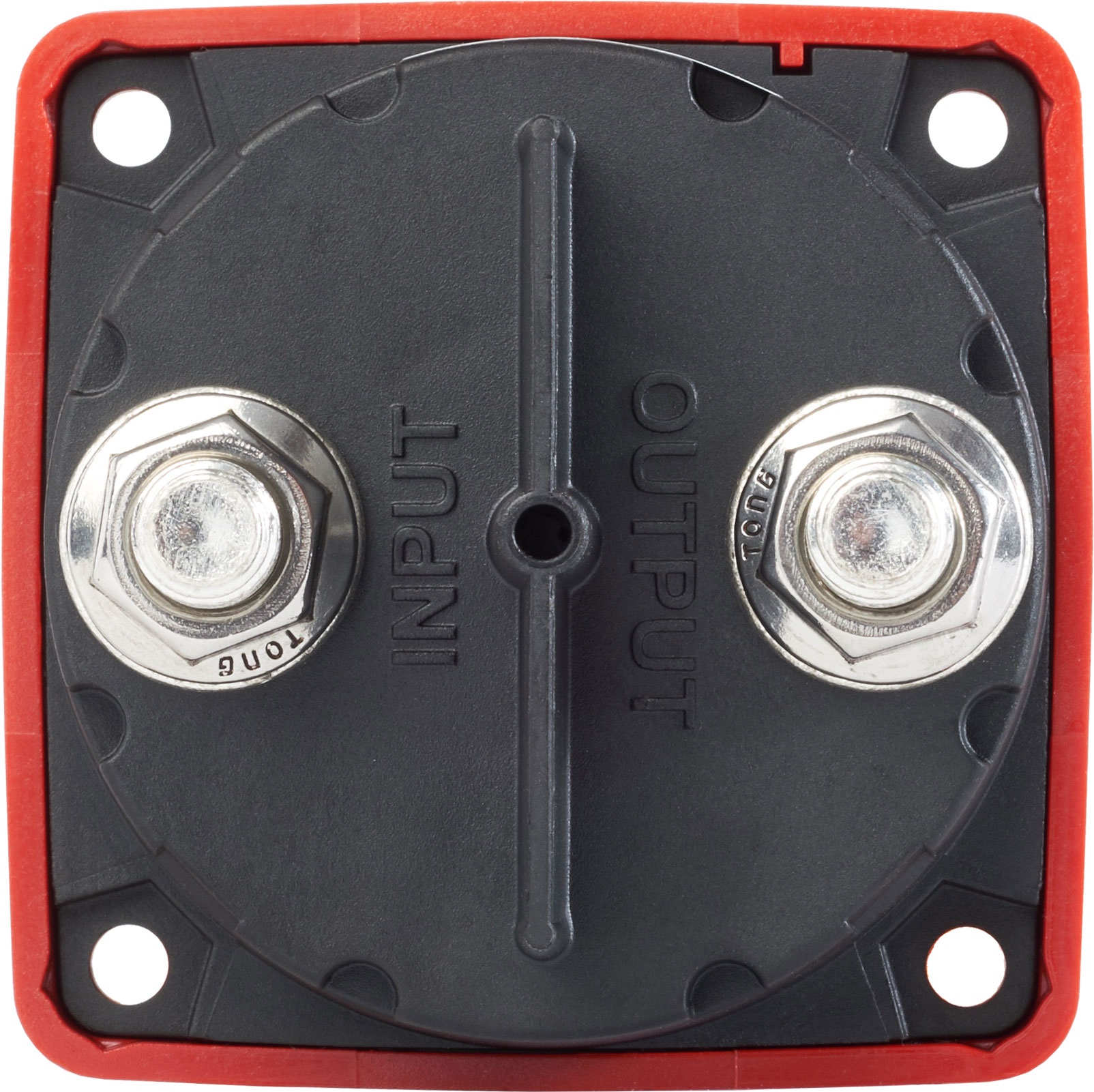

  • Isolating cover with snap-on sections protects rear contacts
Specifications
Switch Type  Single Circuit ON-OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  No
Maximum Voltage 48V DC
Stud Size 3/8″
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating  300A
Intermittent Rating  500A (5 min)
Cranking Rating 30 sec  900A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8″ – 16 (M10)
Weight 0.65Lb (0.29 Kg)
Weight 0.65lb (0.29 kg)
Weight 0.29 kg
Dimensions 7.5 × 7.5 × 8.5 cm
