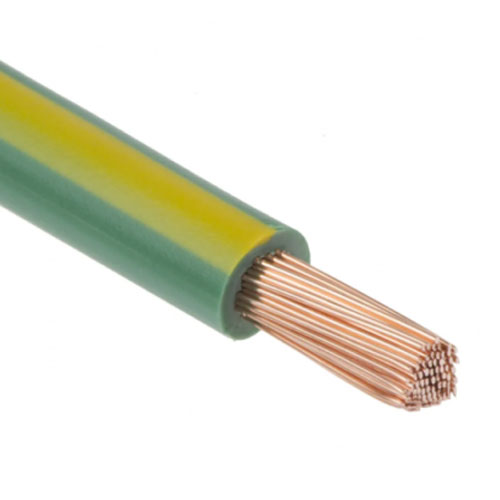

1 Meter of 4.0mm² Tri-Rated Green/Yellow Bonding Cable

,

1 Meter of 4.0mm² Tri-Rated Green/Yellow Bonding Cable

£2.50 Inc. VAT

Available on back-order

SKU: 4MMBOND Categories: , Tags: , ,

Perfect for Chassis Ground cabling between Consumer Unit MET and Vehicle Chassis to ensure compliance with BS 7671

Applications

This 4mm² CSA Single Core Green/Yellow Bonding Cable has a variety of application use such as;

• Bonding of 8mm2 Copper LPG Pipes to ensure compliance with BS 7671

• Chassis Ground cabling between Consumer Unit MET and Vehicle Chassis to ensure compliance with BS 7671



  • PVC single core acc. to
    DIN VDE 0285-525-2-31 /
    DIN EN 50525-2-31 / IEC 60227-3
  • Temperature range
    flexing  +5°C  to  +70°C
    fixed installation  -30°C  to  +80°C
  • Nominal voltage
    U0/U 450/750 V
  • Test voltage
    2500 V
  • Insulation resistance at +70°C
    nach DIN VDE 0285-525-2-31
  • Minimum bending radius
    fixed installation
    core Ø ≤ 8 mm: 4x outer Ø
    core Ø > 8-1 2 mm: 5x outer Ø
    core Ø > 12 mm: 6x outer Ø
Weight 0.3 kg
Dimensions 30 × 30 × 30 cm
